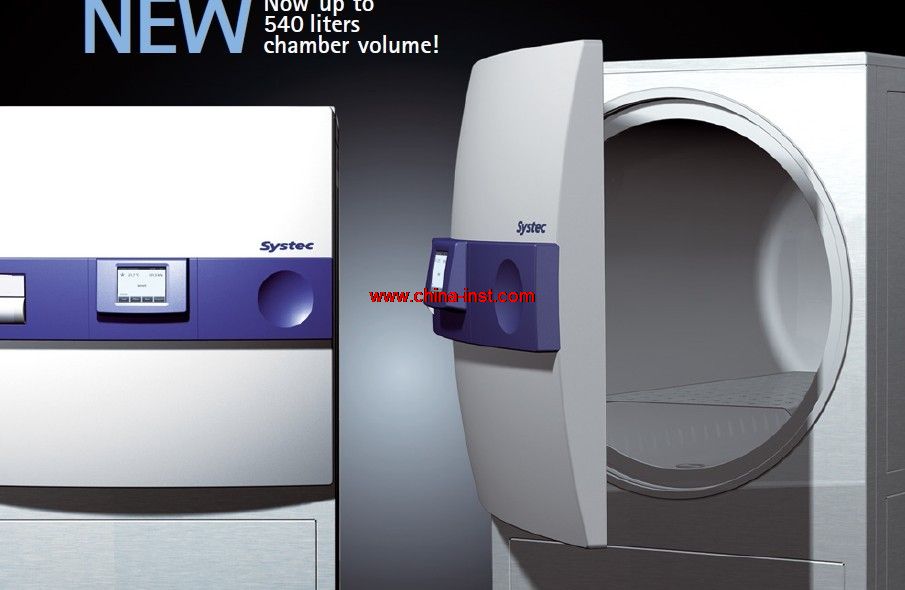

產品詳細介紹：

技術參數：

- 柜式前開門進樣/Horizontal front loading

- 容量/capacity：210L至540L

- 最大壓力/max. pressure = 4 bar

- 操作溫度范圍/operating temp. range = 60-140℃

- 腔體溫度范圍/chamber working temperature range = -10oC-140℃

- 操作時間范圍/sterilizarion time = 0-9999min

*- 內置蒸汽發生裝置，壓力腔體不帶電加熱金屬/built-in steam generator separated from sterilization chamber

*- 溫度精度/temperature precision = 0.1℃

- 壓力精度/pressure precision = 1 mbar

- 保溫溫度范圍/warm keeping temperature = 40 - 80oC

- 帶外部蒸汽供應連接口/Connection to external steam supply

*- 100個滅菌程序 = 1-3 固體滅菌/4-5 廢棄物滅菌/6-7 廢液滅菌/8-11液體滅菌/12清洗/13 B-D測試程序/14真空測試程序/15-100 自設程序(100 sterilization programs = 1-3 solid /4-5 waste /6-7 liquid waste /8-11 liquid /12 cleaning/13 B-D test/14 Vacuum test/15-100 Free programs)

*- 高達500個滅菌周期數據存儲/Internal memory documentation for up to 500 sterilization cycles

- 觸摸屏操作系統/Touch Screen operation

- 可設置滅菌結束自動開蓋/Pre-programmable automatic door opening at the end of a program

*- 蒸氣排放前經Pt100調節系統控制自動冷凝，避免排水管道接觸高溫/exhaust steam is condensed before drainage via Pt100-regulated cooling system

*- 標配獨立樣品溫度探頭/flexible medium temperature sensor PT-100

*- 液體滅菌后保溫功能/Temperature holding function after the end of program for liquids

- 隔熱門蓋/heat-resistant lid

- 監控系統識別失敗程序/program failure warning

- 自動補水裝置/automatic water refill

- 蒸氣發生器無水警報/low water level warning in steam generator

- RS232/RS485/USB 計算機接口及局域網接口/RS232/RS485/USB&Ethernet interface

- 壓力安全閥/safety pressure valve

*- F0值計算功能/Calculation of F0

*- 溫度及壓力雙重控制/sensor for temperature and pressure control

*- 抗腐蝕AISI 316 TI 不銹鋼外殼及腔體結構/corrosion resistant-AISI 316 TI stainless steel housing & chamber frame

- 具備認證口/validation port

- 國際安全標準文件/international standard safety documents

主要特點：

l         內置獨立蒸汽發生器

l         有效滅菌容積：210升或以上，適合企業大容量滅菌需求

l         標配獨立樣品溫度探頭

l         抗腐蝕AISI 316 TI 不銹鋼外殼及腔體結構

l         具備認證口及國際安全標準文件
