產品特點:
執行標準:ASTM/ ISO2555標準
他的現代化彈簧的技術和堅固的設計可確保不可否認的可靠性。
配置:包含支架和2-7號轉子。
技術規格
測量原理
ASTM轉子旋轉粘度計
旋轉速度
21速度:0.3/0.5/ 0.6/1/1.5 /2 /2.5/3/4/5/6/10/12/20/30/40/50/60/100/200/250轉
扭矩范圍
0,05至10 mNm
準確性
+/ - 1%的滿刻度
重復性
+/ - 0.2%
數字顯示
轉速 - 轉矩 - MS - 粘度: - 時間
粘度范圍
20 - 156 000 000 mPa.s
電源電壓
90-240 VAC,50/60赫茲
其他細節
黑色使修復時間觸變樣品的測量。
外形尺寸(寬x長x高)和重量
122×130×660毫米 - 6公斤
應用:食品行業/化工/石油行業/化妝品/制藥化/汽車行業/建筑行業油漆/涂料/油墨油漆/涂料/油墨/教學
=====================================================================

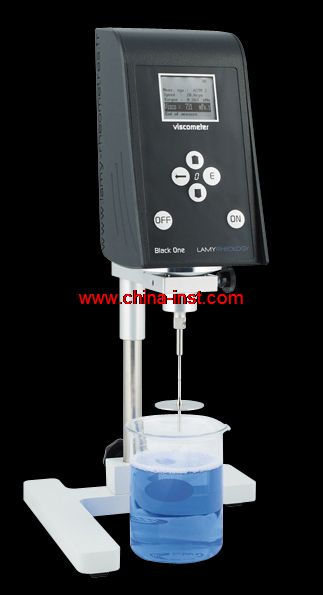

The BLACK ONE is designed for viscosity measurements in accordance with theASTM /ISO 2555 standard. His modern springless technology and sturdy design ensures undeniable reliability. It is delivered with a laboratory stand and a set ofASTM2 to 7 spindles.
BLACK ONE SPECIFICATIONS
Measuring principle
Rotating viscometer with ASTM spindles
Rotation speeds
21 speeds : 0.3 / 0.5 / 0.6 / 1 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 10 / 12 / 20 / 30 / 40 / 50 / 60 / 100 / 200 / 250 rpm
Torque range
0,05 to 10 mNm
Accuracy
+/ - 1% of the full scale
Repeatability
+/ - 0.2%
Digital display
Speed - Torque - MS - Viscosity - Time
Viscosity range
20 - 156 000 000 mPa.s
Supply voltage
90-240 VAC 50/60 Hz
Other detail
The Black One enables to fix time of measurement for thixotropic samples.
Dimensions (W x L x h) and weight
122 x 130 x 660 mm - 6 kg
|
