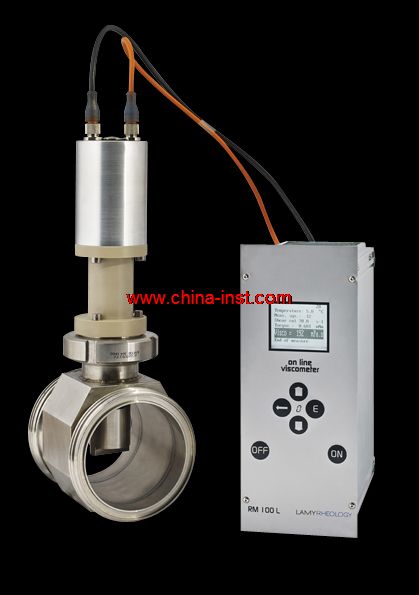

RM100L在線粘度計

RM100L有19個旋轉速度從5至600轉，一個4-20mA輸出信號，
RS232串口。
RM100L管道上直接在線高流速或低彎曲流率，并使用一個磁耦合提供完美的密封性。實時的粘度測量。

RM100L規格
測量原理：在線旋轉粘度計
轉速19轉的速度：
5/6/10/12/20/30/40/50
60/70/80/90/100/200/250
300/400/500/600。
扭矩范圍0.1至20 mNm
溫度-20至80°C（PT100傳感器選項）
精度+/-1％滿量程
重復精度+/ - 0.2％
數字顯示溫度 - 轉速 - 轉矩 -
粘度 - MS - 時間
粘度范圍:1 to 500 000 mPa.s
電源電壓90-240 VAC，50/60赫茲
PC聯接RS232串口
模擬輸出4-20毫安的扭矩
其他細節

粘度RM軟件允許自動電腦上測量。
外形尺寸（寬x長x高），箱：105×175×261毫米
主管：∅92毫米X H312毫米
重量4公斤

應用：

食品工業/化妝品/制藥/巧克力/化工

可選配測試單元和軟件

LD75 CD75，CD50，LD100，CD25測量單元。

Visco RM 軟件

================================================================

RM 100L

online viscometer

The RM 100L has 19 rotation speeds from

5 to 600 rpm, a 4-20 mA output signal and

RS232 serial port.

RM 100L works directly online on a pipe

for high flow rates or in a bend for low

flow rates, and uses a magnetic coupling

providing perfect leaktightness. Real time

acquisition of the viscosity.

RM 100L SPECIFICATIONS

Measuring principle On line rotating viscometer

Rotation speeds 19 speeds in rpm:

5 / 6 / 10 / 12 / 20 / 30 / 40 / 50

60 / 70 / 80 / 90 / 100 / 200 / 250

300 / 400 / 500 / 600.

Torque range 0.1 to 20 mNm

Temperature -20 to 80 °C (PT100 sensor in option)

Accuracy +/-1% of the full scale

Repeatability +/- 0.2%

Digital display Temperature - Speed - Torque -

Viscosity - MS - Time

Viscosity range 1 to 500 000 mPa.s

Supply voltage 90-240 VAC 50/60 Hz

PC connexion RS232 serial port

Analog output 4-20 mA for the torque

Other detail The Visco RM software allows automatic

measurements on computer.

Dimensions (WxLxH) and weight Electronic box:

105 x 175 x 261 mm

Head: ∅92 mm x h 312 mm

4 kg

APPLI CATIONS

Food industry Cosmetics/Pharmaceuticals

Chocolate Chemical industry

AVAIL ABLE ACCESSORIES

CD75, LD75, CD50, LD100, CD25 measuring cell.

Visco RM software.
