pH
量程：-2.000 - 20.000 pH
分辨率：0.1 / 0.01 / 0.001 pH
相對精度：±0.002 pH
校正點：1 ~ 6點
自動識別緩沖液：USA，NIST，DIN，PWB，自定義

ORP
量程：± 2000.0 mV
RmV量程：± 2000.0 mV
分辨率：0.1 mV
相對精度：± 0.2 mV + 1LSD

溫度
量程：-10.0 - 110.0℃
分辨率：0.1℃
相對精度：± 0.5℃

儀表功能
溫度補償方式：自動 / 手動（0.0-100 ℃）
GLP標準：符合
校正提醒：是
顯示斜率/offset ：是
IP67標準：符合
數據存儲：500組
操作溫度：0-50 ℃
LCD顯示：背光LCD（5.4×7.1 cm）
自動關機：2-30分鐘不操作自動關機
輸入：DC phono sockets，BNC，8針接口
輸出：IrDA（紅外傳輸），RS232C
電源：4×1.5 V 'AAA' 堿性電池；9 V穩壓電源，500 mA
電池壽命：＞500小時

儀表尺寸/重量
單機：18.3×9.5×5.7 cm / 460 g
包裝：40×33×10 cm / 3200 g



Specifications

Product Specification	Description
pH Range	-2.000 to 19.999 pH
Resolution & Accuracy (±1 LSD)	0.1/ 0.01/ 0.001 & ±0.002 pH
mV Range	±2000 mV
Resolution & Accuracy (±1 LSD)	0.1 mV & ±0.2 mV
Temperature Range	-10.0 to 110.0 °C (14.0 to 230 °F)
Resolution & Accuracy	0.1 °C/ 1.0°F
Temperature Compensation	Automatic / Manual (0 to 100 °C)
No. of Calibration Points	Up to 6 points
Cal Due Alarm	Yes (Days - Max 30)
pH Buffer Options	USA, NIST, DIN, PWB
Custom Buffer Calibration	Yes (2 to 5)
Slope/ Offset Display	Yes (Display + Icon)
Inputs	DC phono sockets, 8 pin connector, BNC
LCD Display	Back-lit Dot Matrix
Memory	500 data sets
Output	Yes (IrDA/ RS232C)
Special Functions	Stability Indicator; Self-diagnostic; Non-Volatile Memory; Hold & Auto-Power Off after 20 minutes
GLP	Yes
Ingress Protection	IP67
Power	4 'AAA' x 1.4V batteries or 9VDC power adapter

Order Information

Order No.	Item

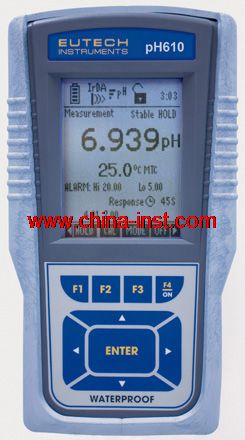

ECPHWP61001	pH610 pH/mV Meter with ATC Probe
ECPHWP61042K	pH610 pH/mV Meter with pH Electrode, ATC Probe, Power Adapter & pH Carrying Kit Set
ECPHWPTEMO1J	Temperature Probe ATC
01X030132	Universal Power Adapter
ECMICROPRNTR01	Serial Impact Micro-Printer: Dot-matrix, paper-roll portable printer with 25-pin female connector. Includes one roll of paper and a 110/120 VAC power adapter.
ECMICROPRNTR02	Serial Impact Micro-Printer: Dot-matrix, paper-roll portable printer with 25-pin female connector. Includes one roll of paper and a 220/230 VAC power adapter.
ECMICROPRNTR02CLK	Serial Impact Micro-Printer with Built-in Real Time Clock: Dot-matrix, paper-roll portable printer with 25-pin female connector. Includes one roll of paper and a 220/230 VAC power adapter.
ECADPTRM9M25	Adpater for RS232 Communication Cable: 9-pin male to 25-pin male connector.
01X447601	USB IrDA Interface Adapter
01X344202	RS232 (LED) Interface Adaptor
